【产品详情】
主要特性和优点
•VibroSight®兼容硬件从振动计®产品线
•VM600Mk2/VM600高性能状态监测•16动态通道和4转速表通道(也可配置为直流输入)
•单独配置输入，通道过滤器，处理和输出-与同步数据采集(固定)频率或订单跟踪)
•24位数据采集和高信噪比数据处理，与数据质量检查•每通道多达20个处理输出
•高分辨率光谱(FFT):高达6400线每500毫秒，每200毫秒多达3200行，每100毫秒多达1600行
•内部光谱的数据聚合(多100毫秒)每隔1秒
•触发前和触发后的数据记录高达100毫秒
•多个警报每处理输出与可配置的限制，迟滞和时间延迟
介绍

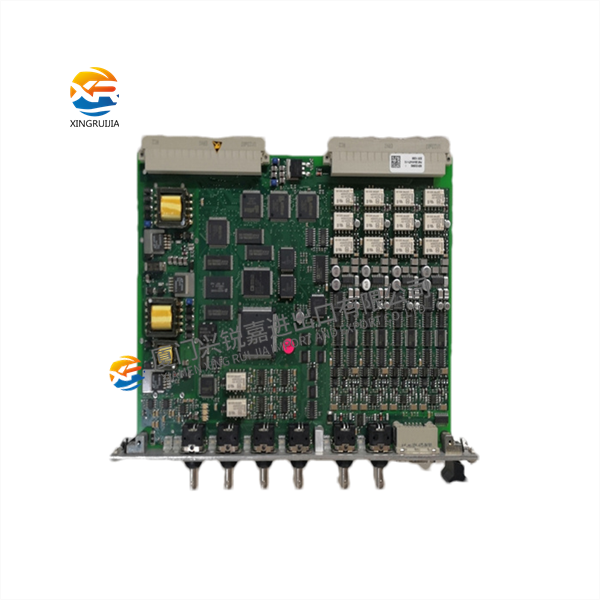

扩展了VM600Mk2/VM600 XMx16 + XIO16T状态监测模块设计用于操作以VM600Mk2/VM600机架为主机械监控系统，来自梅吉特公司振动计®产品线。一个XMx16 + XIO16T模块由处理模块和输入/输出(接口)模块提供16个动态和4个转速通道，可实现高性能机械状态监测。
注意:XMV16 + XIO16T模块优化
机械振动监测应用及XMC16 + XIO16T模块优化机械燃烧监测应用。扩展状态监测模块XMx16 + XIO16T扩展条件监控模块是一代的状态监测模块，其中一起与VibroSight®软件，提供几个关键CMC16/IOC16T卡对的优点以及它们所替代的VM600 CMS软件:
先进的技术，更强大的体系能力(增加振幅和频谱分辨率，更多的缓冲内存用于事件前和事件后数据，更强大的模块级处理，更快的数据采集和存储改进后的软件界面具有强大的功能高分辨率图，综合数据管理，并简化了网络接入开放的接口。
一个XMx16 + XIO16T模块提供了所有的接口和信号处理功能需要一个智能数据采集系统是VM600Mk2/VM600的核心元件基于机架的机械监控解决方案。的模块是为操作而设计的VibroSight®软件:他们获取和分析在传达结果之前，先获取振动数据直接连接到运行VibroSight®的主机使用板载以太网控制器
KEY FEATURES AND BENEFITS
• VibroSight® compatible hardware from the
vibro-meter® product line
• VM600Mk2/VM600 high-performance
condition monitoring
• 16 dynamic channels and 4 tachometer
channels (also configurable as DC inputs)
• Individually configurable inputs, channel
filters, processing and outputs – with
simultaneous data acquisition (fixed
frequency or order tracked)
• 24-bit data acquisition and high SNR data
processing, with data quality checks
• Up to 20 processed outputs per channel
• High-resolution spectra (FFT): up to 6400 lines
every 500 ms, up to 3200 lines every 200 ms,
up to 1600 lines every 100 ms
• Data aggregation of internal spectra
(up to 100 ms) every 1 s
• Pre-trigger and post-trigger data logging at
up to 100 ms
• Multiple alarms per processed output with
configurable limits, hysteresis and time delay
Introduction
The VM600Mk2/VM600 XMx16 + XIO16T extended
condition monitoring modules are designed for
operation with the VM600Mk2/VM600 rack-based
machinery monitoring systems, from Meggitt’s
vibro-meter® product line. A XMx16 + XIO16T
module consists of a processing module and a
input/output (interface) module that provide
16 dynamic and 4 tachometer channels of highperformance machinery condition monitoring.
Note: The XMV16 + XIO16T module is optimised for
machinery vibration monitoring applications and
the XMC16 + XIO16T module is optimised for
machinery combustion monitoring applications.
Extended condition monitoring modules
The XMx16 + XIO16T extended condition
monitoring modules are latest-generation
condition monitoring modules, which together
with the VibroSight® software, offer several key
advantages over the CMC16/IOC16T card pair
and VM600 CMS software that they replace:
state-of-the-art technology, stronger system
capabilities (increased amplitude and spectral
resolution, more buffer memory for pre-event and
post-event data, more powerful module-level
processing, faster data acquisition and storage
rates), improved software interface with powerful
high-resolution plots, integrated data
management, and simplified network access with
open interfaces.
An XMx16 + XIO16T module provides all of the
interfacing and signal processing functions
required of an intelligent data acquisition system
and is a central element in VM600Mk2/VM600
rack-based machinery monitoring solutions. The
modules are designed for operation with the
VibroSight® software: they acquire and analyse
vibration data before communicating the results
directly to a host computer running VibroSight®
using the on-board Ethernet controller
